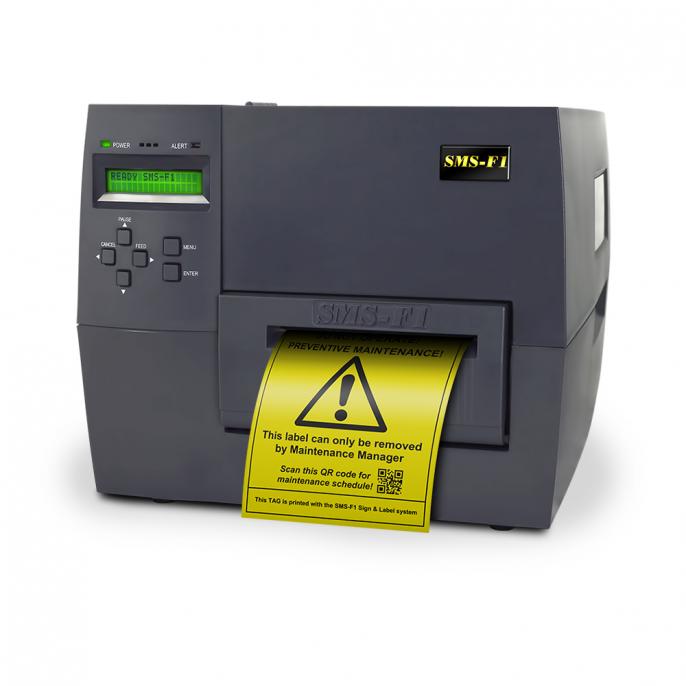

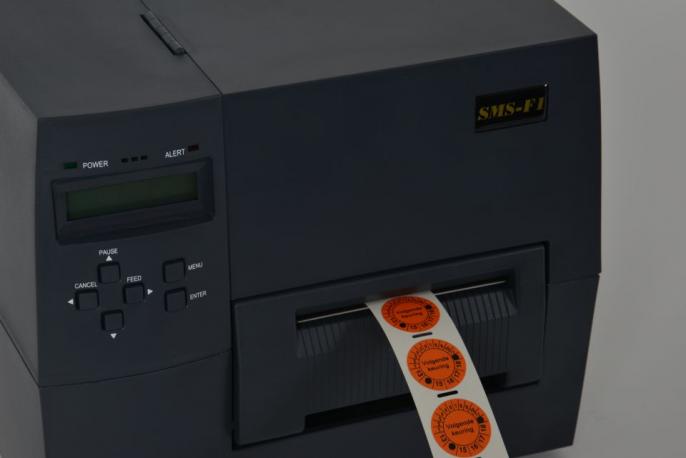

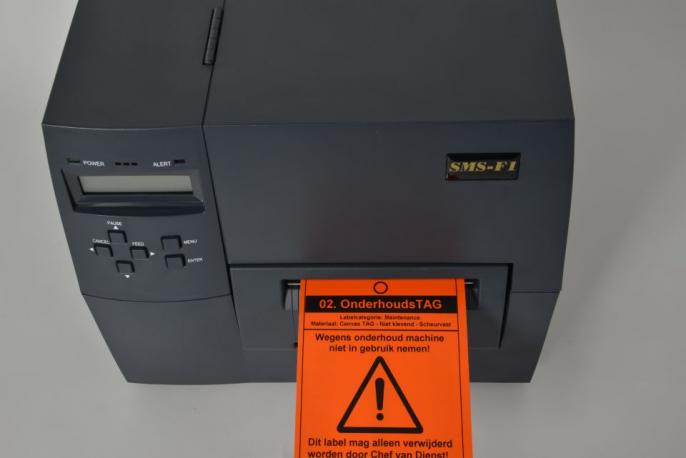

SMS-F1
Printing method: Direct Thermal / Thermal Transfer
Printing resolution: 203 dpi(8 dots/mm)
Printing Speed: 6 ips(152mm/s)
Printing Length: 0.5” ~ 90” (13mm ~ 2286mm)
Printing Width: Max 4.09”(104mm)
Sensors
Reflective(Movable) x 1, Transmissive(Fixed) x 2, Media out sensor, Ribbon out sensor, head open sensor
Communication Interface
Centronics Parallel, RS-232 Serial (Baud rate 2400 ~ 115200 bps), USB(full speed), PS/2 keyboard
1D Barcodes
PPLB: Code 128 UCC, Code 128 auto, Code 128 subset A/B/C, UCC/EAN 128, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit & human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, Code 39, Code 39 with check sum digit, Code 93, EAN-8 & EAN-13, 2&5 digit add-on, Codabar, Postnet, UPC-A 2&5 digit add-on, UPC-E 2&5 digit add-on, GS1 Data Bar
2D Barcodes
PPLB: Maxicode, PDF-417, Data Matrix (ECC 200 only), QR code, Composite code
Software - Label editing
Windows Driver (Win 2000/NT/XP/Windows 7) / Bartender

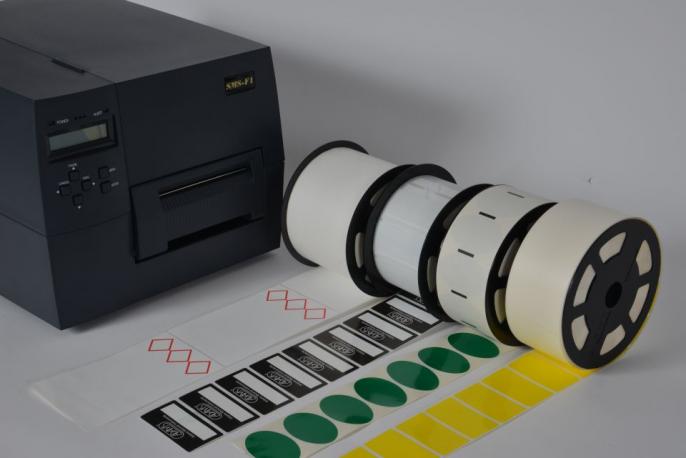

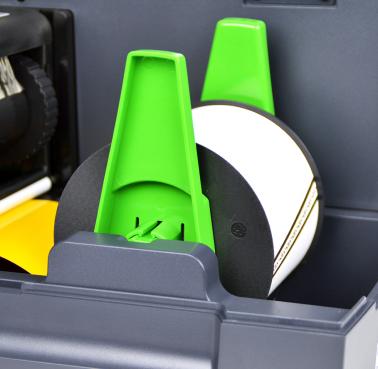

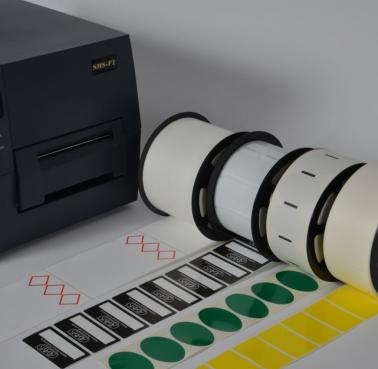

Media Type

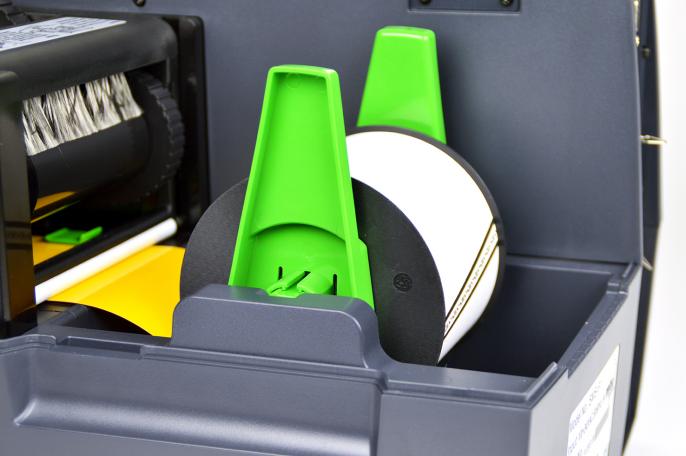

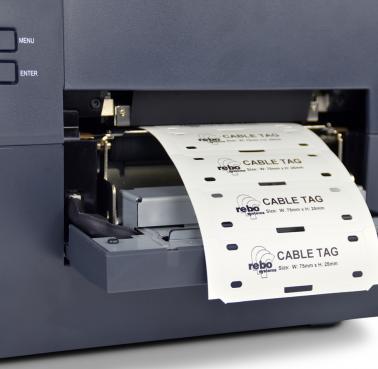

Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label Max Width:4.6”(118mm) Min Width:0.79”(20mm) Thickness:0.0025”~0.01”(0.0635~0.254mm) Max roll capacity(OD):8”(203mm) Core size:1” (3” ID can be installed by media core adapter)
Ribbon
Wax, Wax / Resin, Resin (Ribbon wound ink-side out or ink-side in) Ribbon Width: 1.5”~4.3”(40mm ~ 110mm) Ribbon roll – max OD: 2.9”(74mm) Ribbon Length: max 360m wax, 300m Resin Core size – ID: 1”(25.4mm)
Dimensions: W 390mm x H 255mm x L 309mm
Weight: 16.5 lbs(7.5kgs)
Optional Items
Cutter, Dispenser Kit, Stacker, RTC Card, 4MB Asian Font Card(Traditional Chinese, Simplified Chinese, Korean and Japanese), ArgoKee
