GODEX DT2x
Printmethode
Direct Thermal
Resolutie
203 dpi (8 dots/mm)
Printsnelheid
7 IPS (177 mm/s)
Printbreedte
2.12” (54 mm)
Printlengte
Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
Geheugen
Flash: 4 MB Flash (2 MB for user storage)
SDRAM: 16MB
Sensor Type
Aanpasbare reflectieve sensor
Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: Min. 0.6” (15 mm) – Max. 2.36” (60 mm)
Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm)
Label Roll Diameter: Max. 5” (127 mm)
Core Diameter: 1” (25.4 mm), 1.5” (38.1mm)
Printer Language
EZPL, GEPL, GZPL auto switch
Software
Label Design Software: GoLabel (for EZPL only)
Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
Resident Fonts
Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts: CG Triumvirate™ (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code.

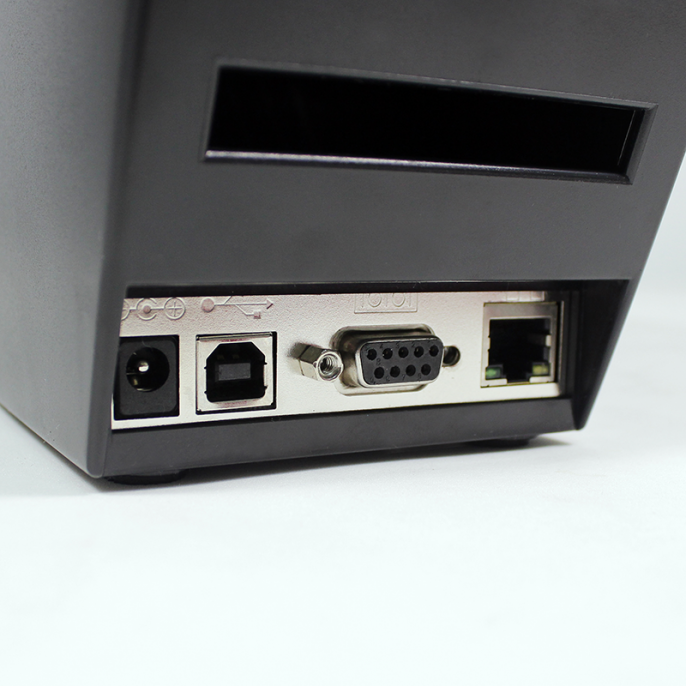

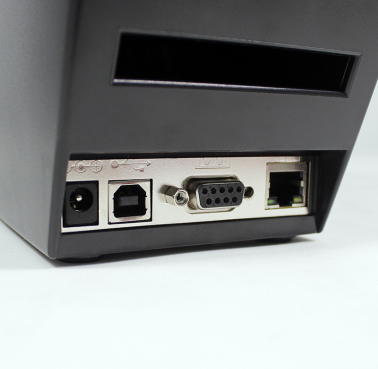

Interfaces
USB 2.0
Serial port: RS-232 (DB-9)
IEEE 802.3 10/100Base-Tx Ethemet port (RJ-45)
Control Panel
One Tri-color LED : Power (Green, Orange and Red)
Function Key : FEED
Real Time Clock
Standard
Power
Auto Switching 100-240VAC, 50-60Hz.
Environment
Operation Temperature: 41°F to 104°F (5°C to 40°C)
Storage Temperature : -4°F to 122°F (-20°C to 50°C)
Humidity
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Agency Approvals
CE (EMC), FCC Class A, CB, CCC, cUL
Dimension
Length: 218 mm
Height: 172 mm
Width: 100 mm
Weight
1.2 Kg
Options
Cutter module
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
